RTLS Software Architecture

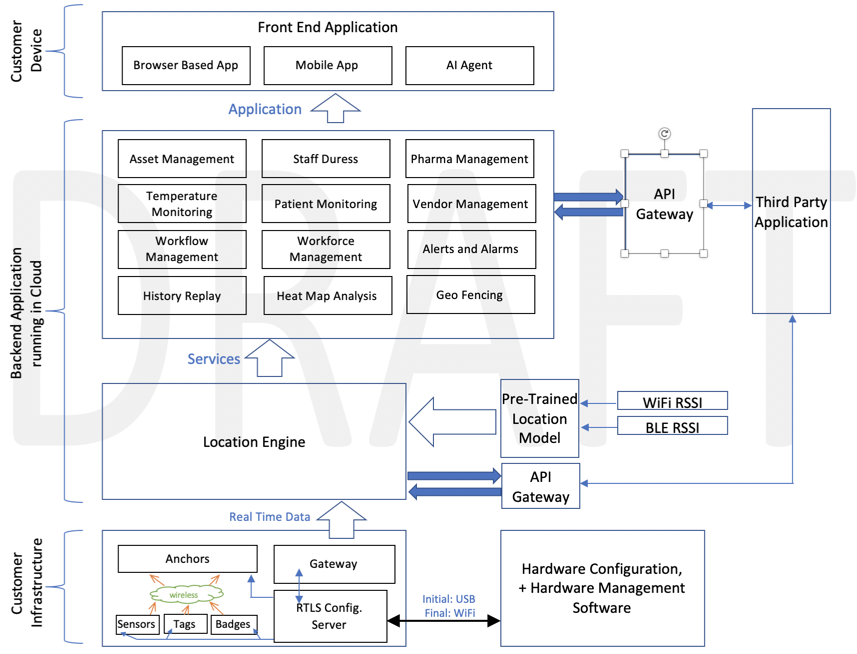

High Level View of Software Architecture described below. Customer Infrastructure consists of Anchors, Tags, Gateway, Switches, Routers, Configuration Server, User Host / Mobile Devices ...
Hardware Components / Firmware Development
- Anchor and Tag Firmware
- Gateway Firmware
Software Application (for Customer Hardware Components)
- Hardware Configuration Server
- Hardware Management Software
Backend Application
- Location Engine
- Service Applications
RTLS Hardware Architecture
Hardware components needed in a typical setup
- Gateway, connected to Internet (Cloud)
- Ethernet Switch (optional)
- Anchor(s)
- Tag(s)

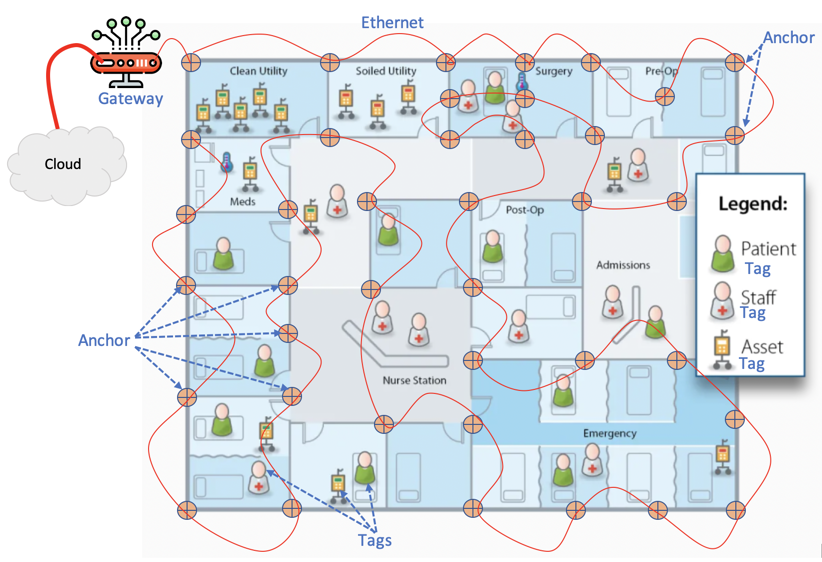

Below shows a typical 20-bed hospital floor plan, where every patient, staff and asset is assigned a Tag. Also shown are 40 Anchors mounted on wall / ceiling to track movement of every patient, staff and asset.
We are constructing:
1. Anchors
2. Tags
3. Gateway
All these require associated Firmware
Associated Software Development:
- Configuration Tool
- Application to configure Anchors / Tags. Must store configuration parameters for each individual anchor, tag and sensors
- Gateway Configuration
- Firmware Download Tool
